Auto Concept Design
Automatic pipe sizing, pressure rating, valve placement and costing
The Challenge
Concept designs for new infrastructure are time consuming, involve multiple teams, and iterate slowly at high cost. This leads to suboptimal designs and delayed projects.
Our Solution
Automatically model and optimise new developments as soon as alignments are in GIS.
Automatically go from GIS alignments to costed concept design
Automatically go from GIS alignments to costed concept design
The platform reads your early GIS alignment data and produces the initial concept design based on your custom design specifications, including: tags and numbering, valve placement, pipe sizing, Material Takeoff, and cost estimate.

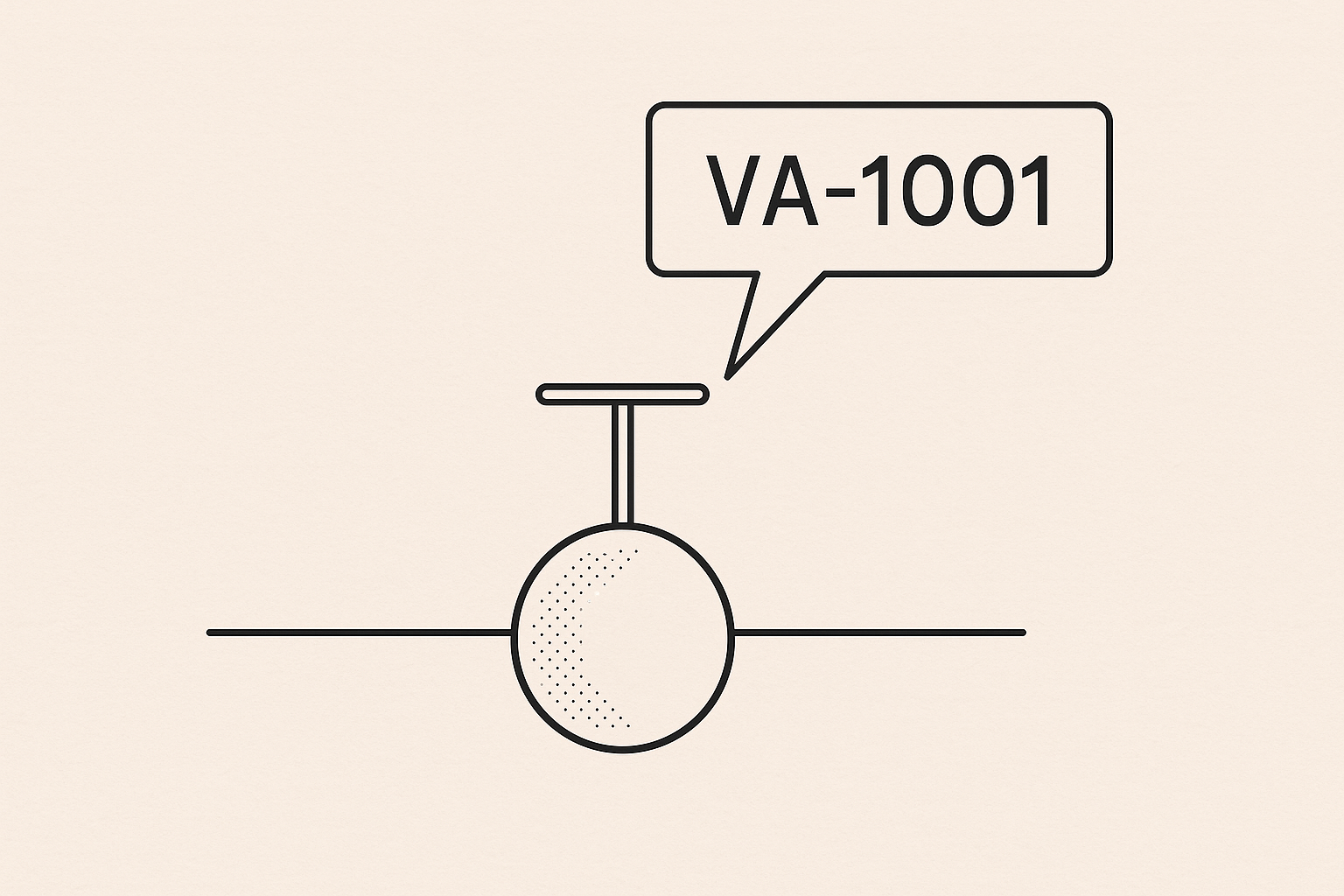

Auto-generate line numbers and tags
Auto-generate line numbers and tags
As soon as new designs are synced, Deep Insight assigns missing line numbers, and equipment tags, mirroring your standards.

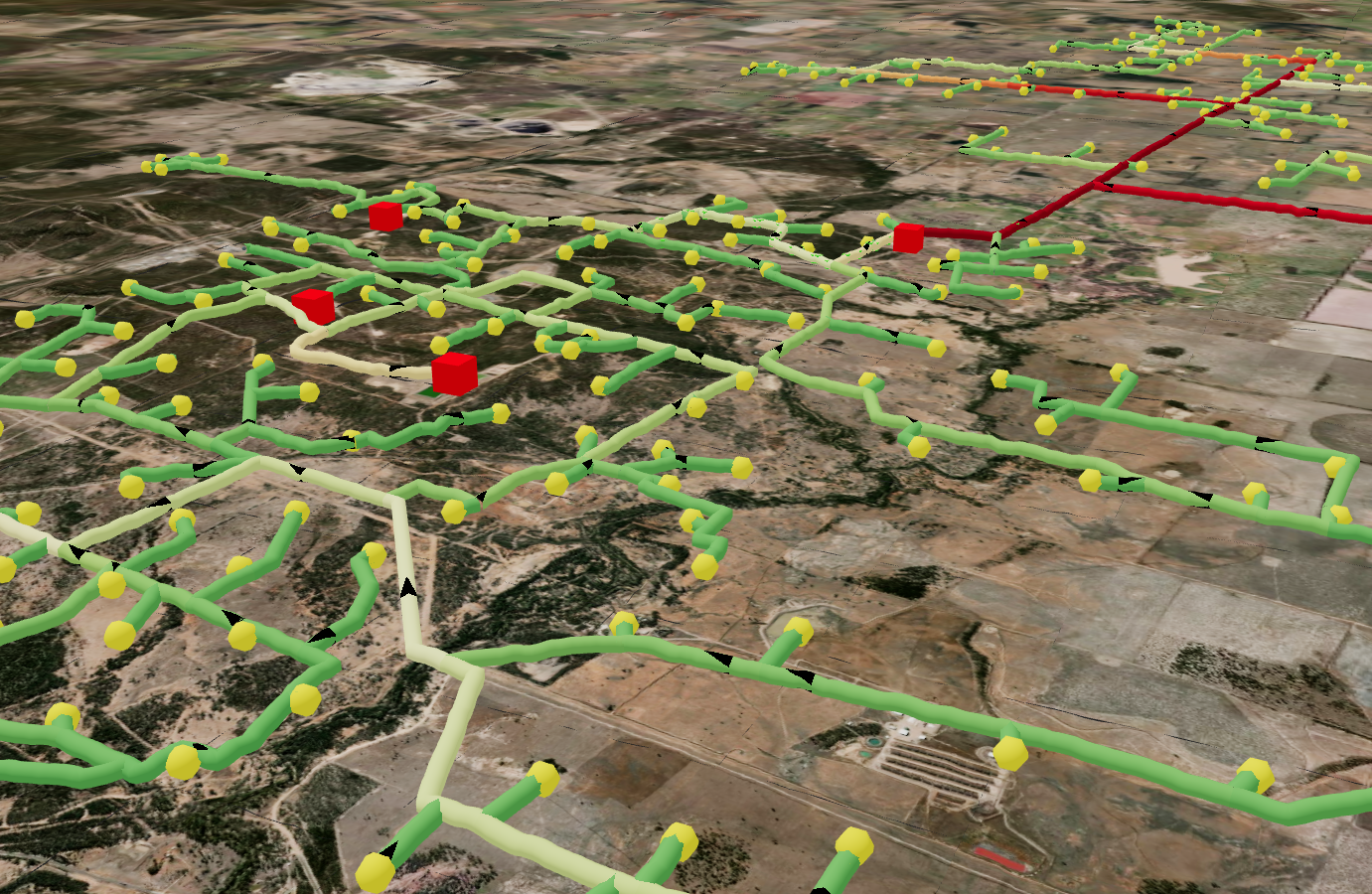

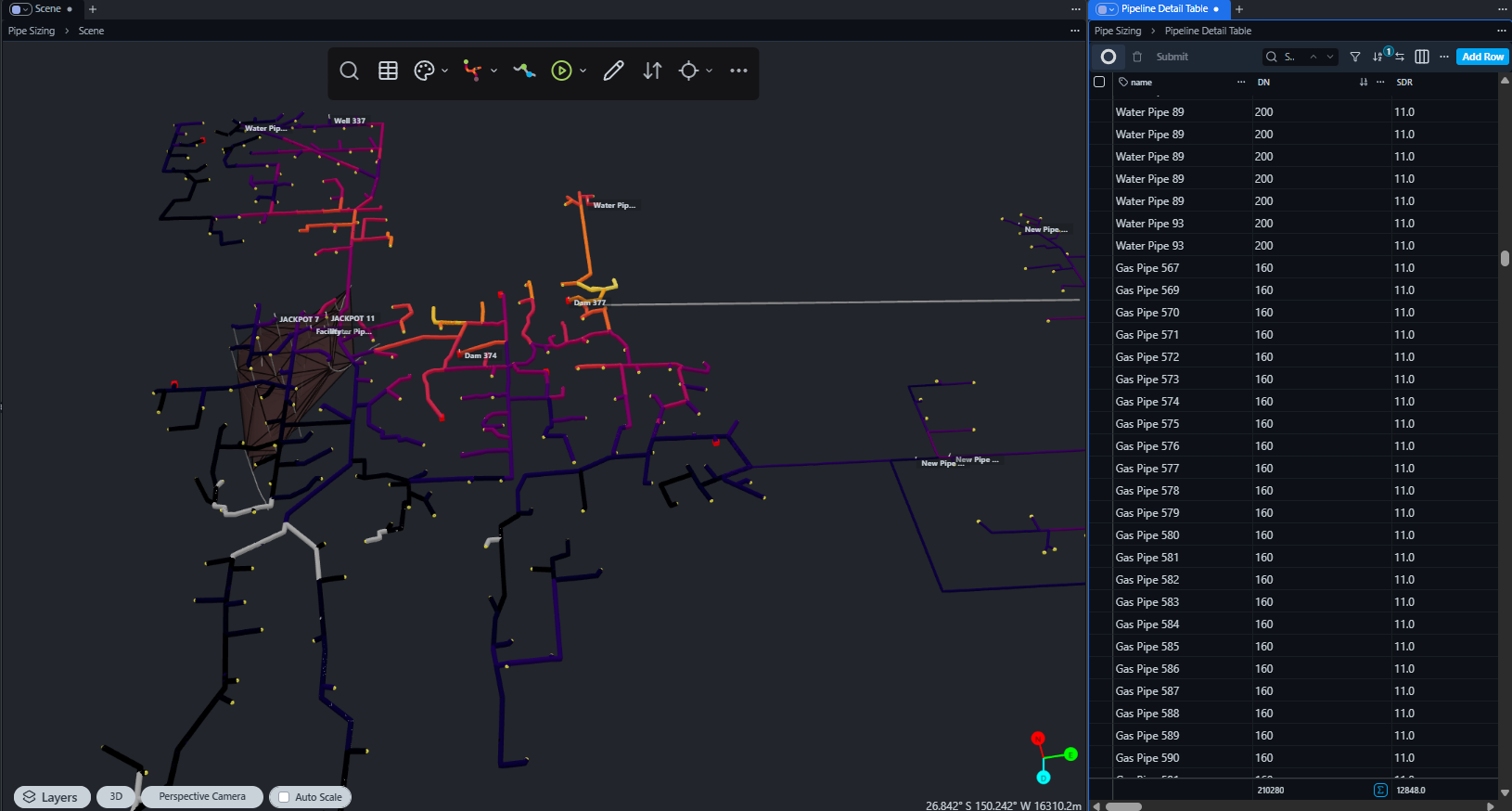

Size pipes with flow modelling and embedded heuristics
Size pipes with flow modelling and embedded heuristics
Run hydraulic calculations and sizing heuristics tailored to your asset. The model selects diameters, based on expected flowrates and considering impact on the existing network.

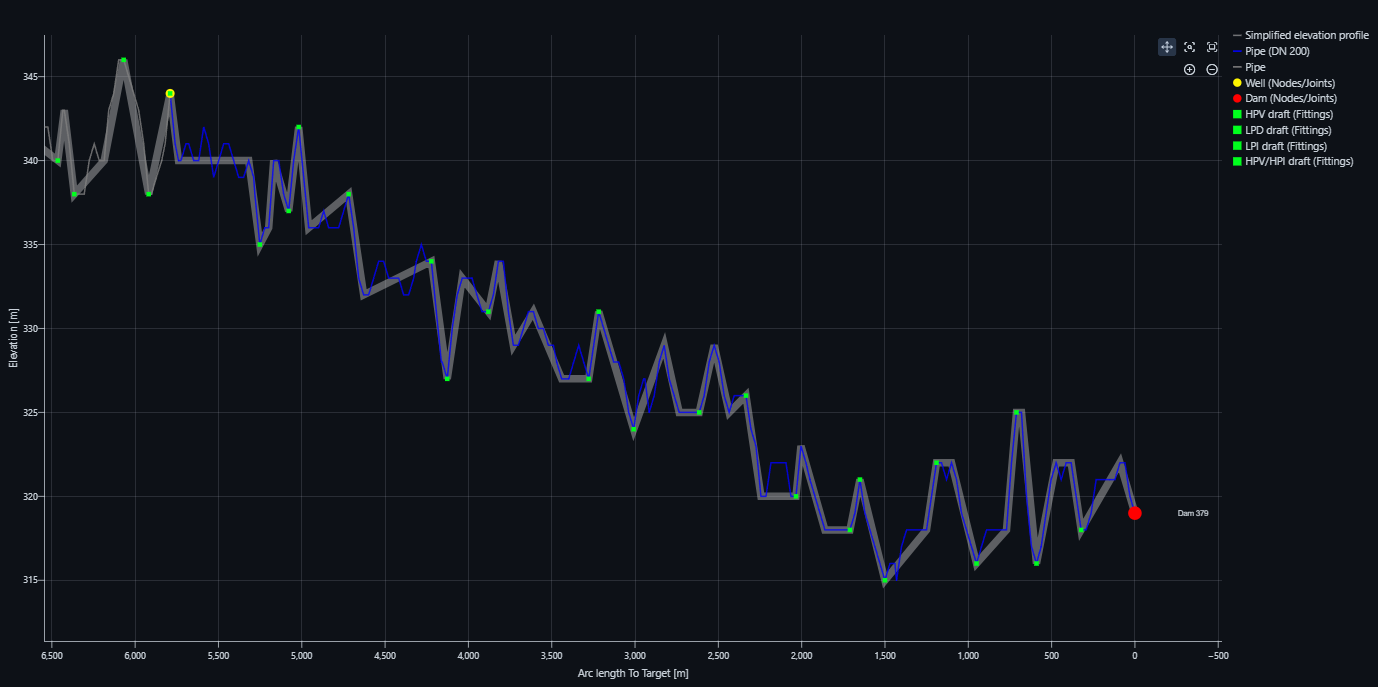

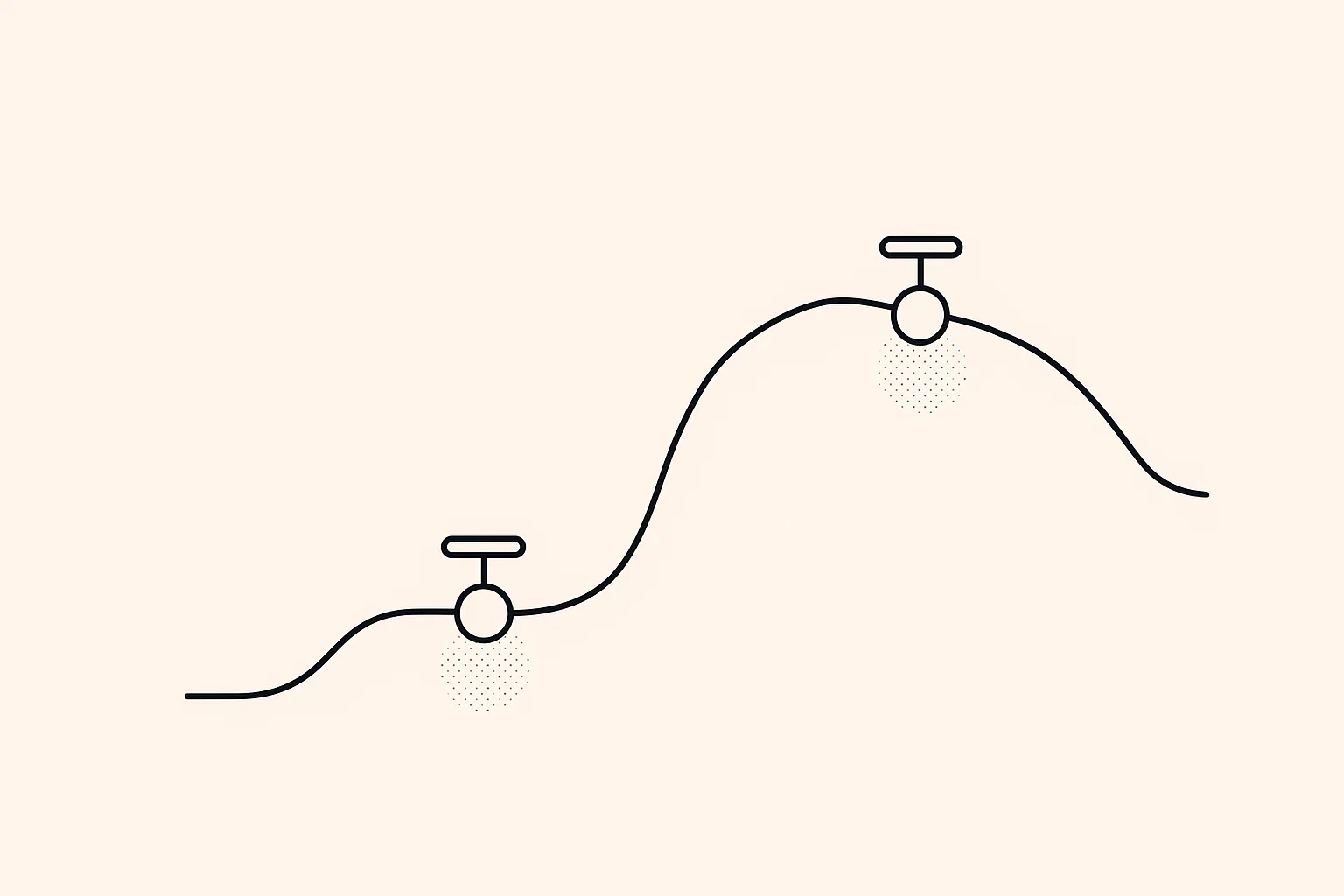

Apply valve placement rules across the entire network
Apply valve placement rules across the entire network
Encode operator standards once and let the system propagate vents, drains, and isolation valves across the entire network.
Produce MTOs, cost estimates, and design variants on demand
Produce MTOs, cost estimates, and design variants on demand
Instantly derive material takeoffs, budgetary costs, and scenario comparisons. Instantly assess the value and tradeoff of different designs.
